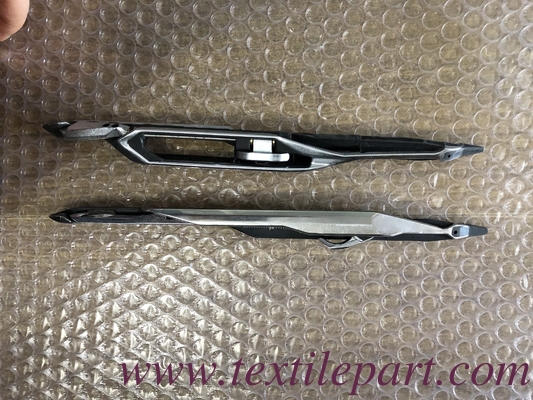

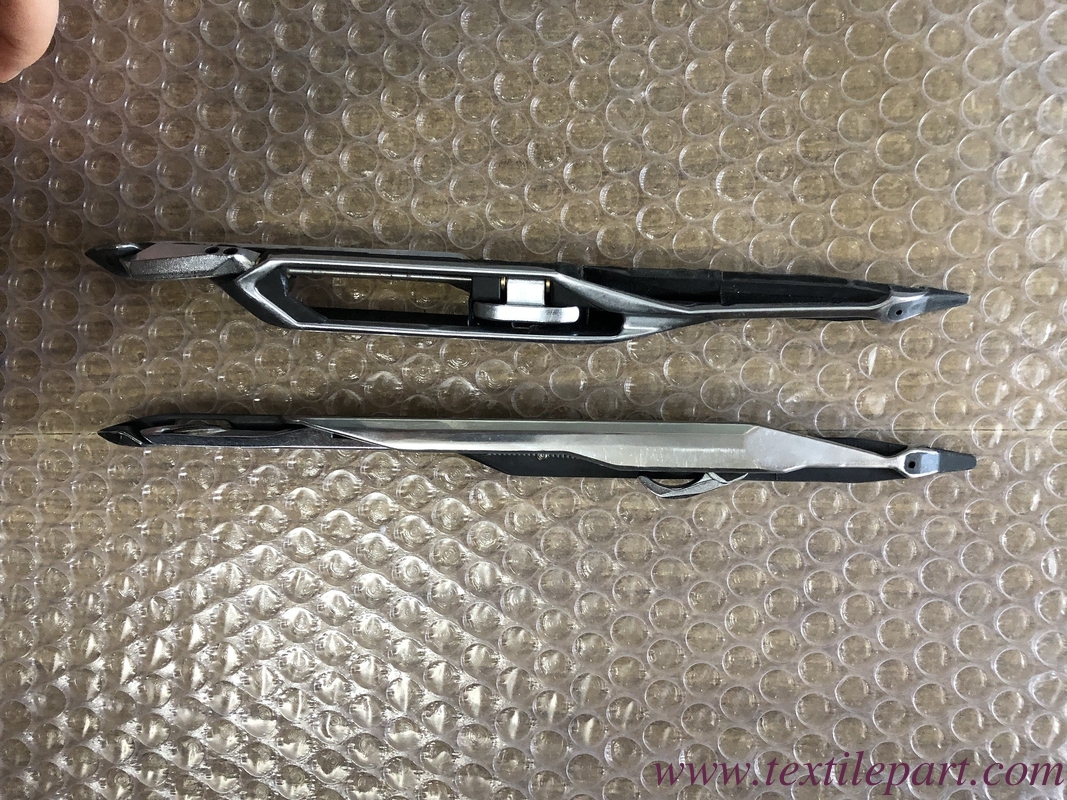

9120286 LH 9120287 RH C401 GRIPPER

VAMATEX 401

ENTER GRIPPER

ORIGINAL CODE AND DETAILS

9120044 ENTER GRIPPER C401

9120286 ENTER GRIPPER P401

2147028 OSCILLANTING TOE BUSH

0080003 SCREW TSPIC M2,5X8

2523014 YARN GUIDE

2103006 BAR XSPRAG P.P.

2563116 WEFT HOLDER BLADE EN.GR.

2563126 WEFT HOLDER FOIL EN.GR.

2193156 ENTER GIRPPER SPRING

2523004 ENTER GRIPPER LEVER

2690118 SCREW X OSCILLATING BL.

0040004 SCREW M2,3X4 UNI 6109

2508162 SLIDING BLOCK

2508162 BLACK SLIDING BLOCK

2548416 GUDE FLYER X ENT.GRIPPER

401 EXIT GRIPPER

ORIGINAL CODE AND DETAILS

9120043 EXIT GRIPPER C401

9120287 EXIT GRIPPER P401

0152002 SPEC.IRON WASHER 2,7X0,8

2148132 TRACTION FOIL FOR ENT.GRIPPER

2150042 EXIT GRIPPER PIN

2148162 BUSH

0041009 SCREW M3X10 U6109 AISI30

2148176 EXIT GRIPPER BUSH

2293020 EXIT GRIPPER SPRING

2522024 EXIT GRIPPER HOOK

2526174 EXIT GRIPPER LEVER

2550014 CONNEC.GUSSET X EXIT GR.

2550020 TRAVELLER NORMAL WEFT

2580302 TRAVELLER PARALLEL WEFT RED TYPE

2548418 GUIDE FLYER X EX.GRIPP.
