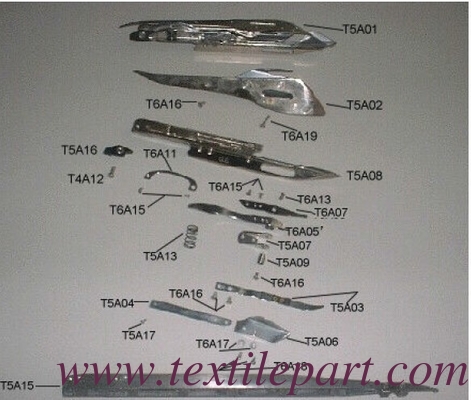

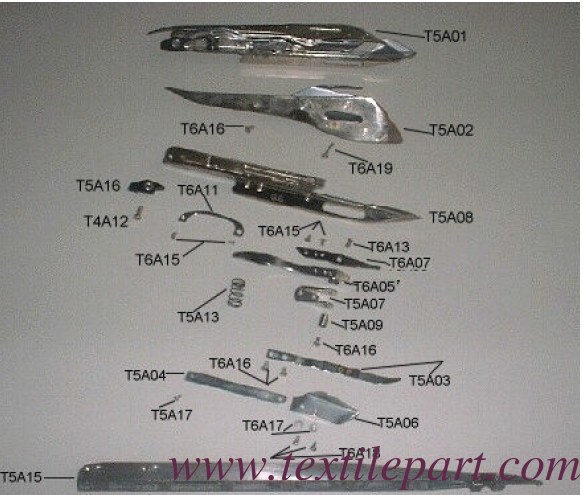

TP500 PARTS PBO14799 PBO13609 PBS74718 PBO64014

TP500 ENTER GRIPPER

HDB030080070 SCREW TSP 3X7

PBO14799 ENTER GRIPPER OPEN LEV.

PBO38958 COVER

PBP51754 LATCH

PBO64014 BLADE YARN GUIDE

PBR72112 SUPPORT GRIPPER BODY

PBQ33883 BUSH 4,5X7

PBP51753 SPRING

PBP51752 SPRING

PBP53357 SPRING

PBP60294 PIN GRIPPER

HOLDER

HOOK

SCREW TSP 2X3,5

PBP52369 LEVER

PBP55422 PLATE

PBS66007 SPRING GUIDE

PBP64155 SHOE TONGUE FOR THREAD

HLW250050070 SCREW TSP 2,5X6

HHB020040050 SCREW TSP 2X4

PBP69246 BUSH 8X3X0,2

HAC020040070 SCREW 2X2,5

TP500 EXIT GRIPPER

PBO13609 EXIT GRIPPER COMPLETE

PBO52212 LONG LEVER

PBP55291 SPRING

PBP64208 PROTECT.PLATE

PRO46631 HOOK HEAD WITH WIDIAM

PBP63671 GRIPPER BODY

PBP60157 PIN DIAM. 3X9,5

PBO33882 PIN DIAM. 4,5X5,7

PBP69246 WASHER DIAM. 8X2,5X0,5

PBO52211 SHORT LEVER

PBZ04185 STEEL LEVER

CARBON FIBRE LEVER

PBP63766 PLATE

PBQ33833 PIN THREATED 4,5X7

SCREW 4X5,5

PBV51749 PLATE

SCREW TSP 2,5X5

SCREW TSP 2,5X3

SCREW TSP 2,5X6

WASHER DIAM. 6X2

TP500 ENTER GRIPPER

PBO10339 ENTER GRIPPER NO LEVER

PBO38906 COVER

PBS74718 GRIPPR BODY

PBP63772 THREAD GUIDE

PBO55293 SPRING

PBO55316 SPRING

PBP51730 SPRING

PBP51739 SPRING

FNC010022070 WASHER 5X2

HDB030080070 SCREW TSP 3X7

FNX03032 WASHER 7X3

PBS72064 GRIPPER HOL.+HOOK

HHA020100050 FIXING HOOKS SCREW

PBS63778 TAIL SPRING REGOLATION WEFT SCREW 2,5X8

SCREW TSP 2,5X2

HLW250050070 SCREW TSP 2,5X6

HHB020040050 SCREW TSP 2X4
